Endless 90 ES MK2 Frame
Endless 90 ES MK2 Frame
Couldn't load pickup availability

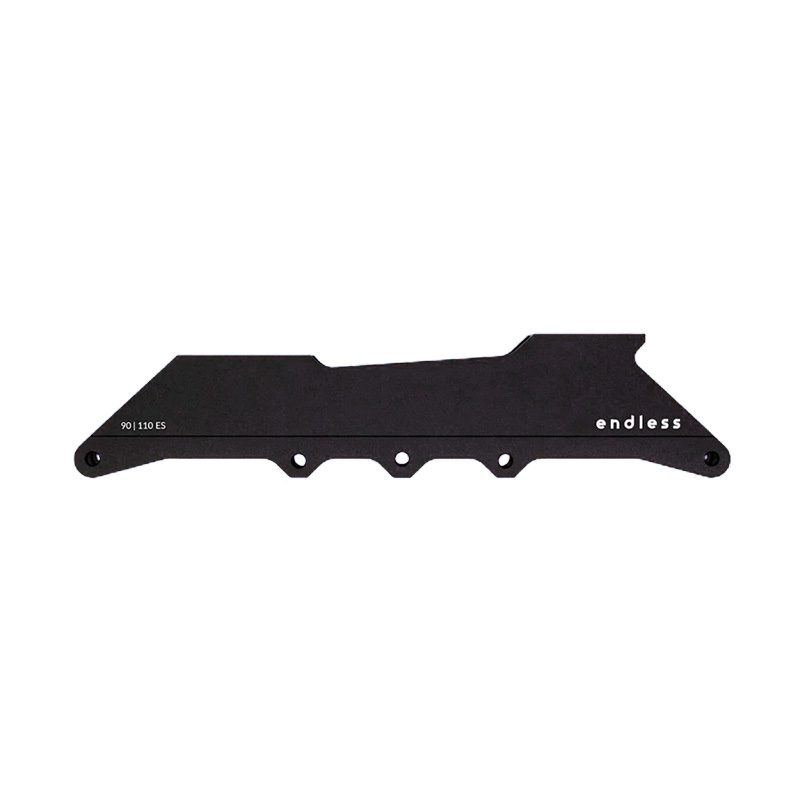

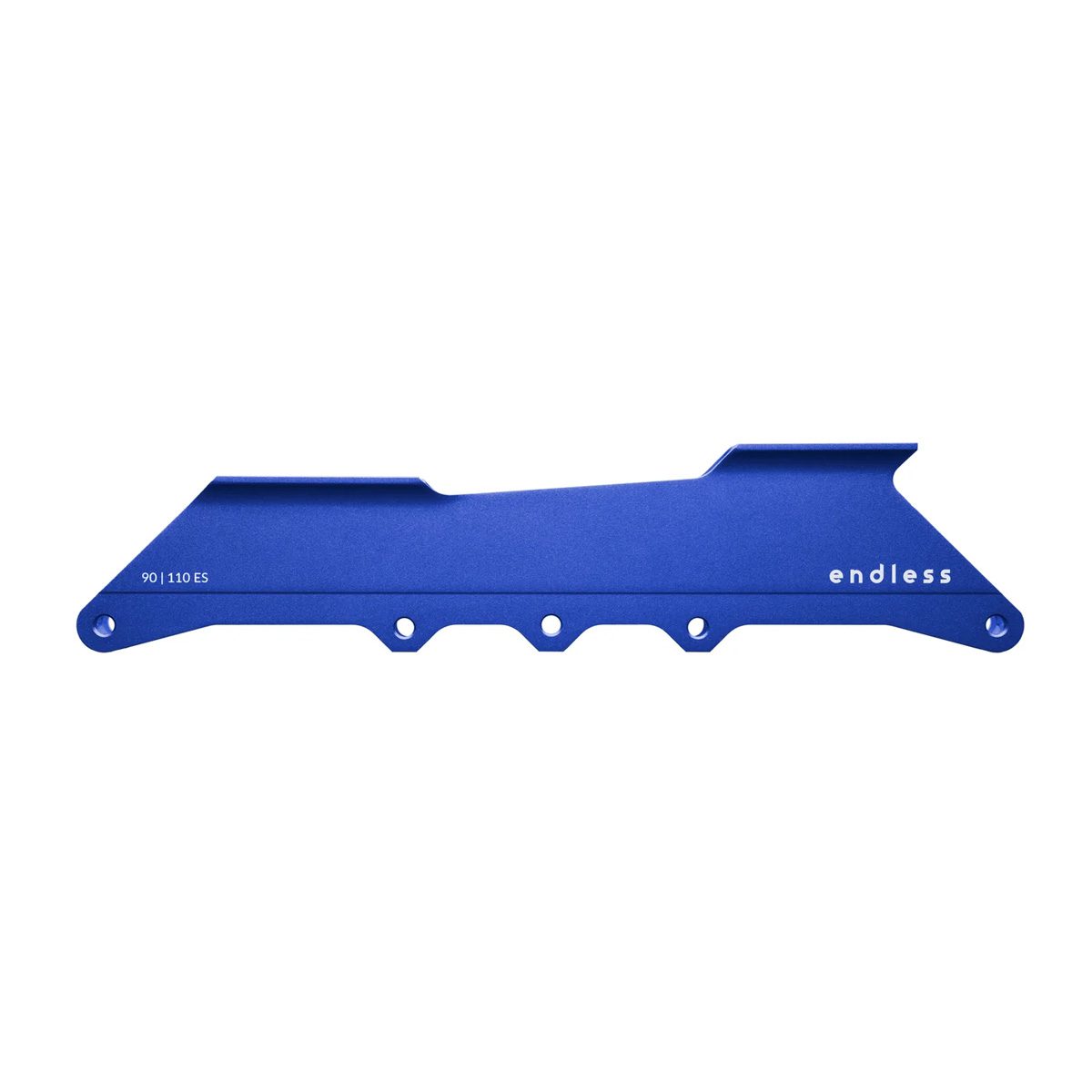

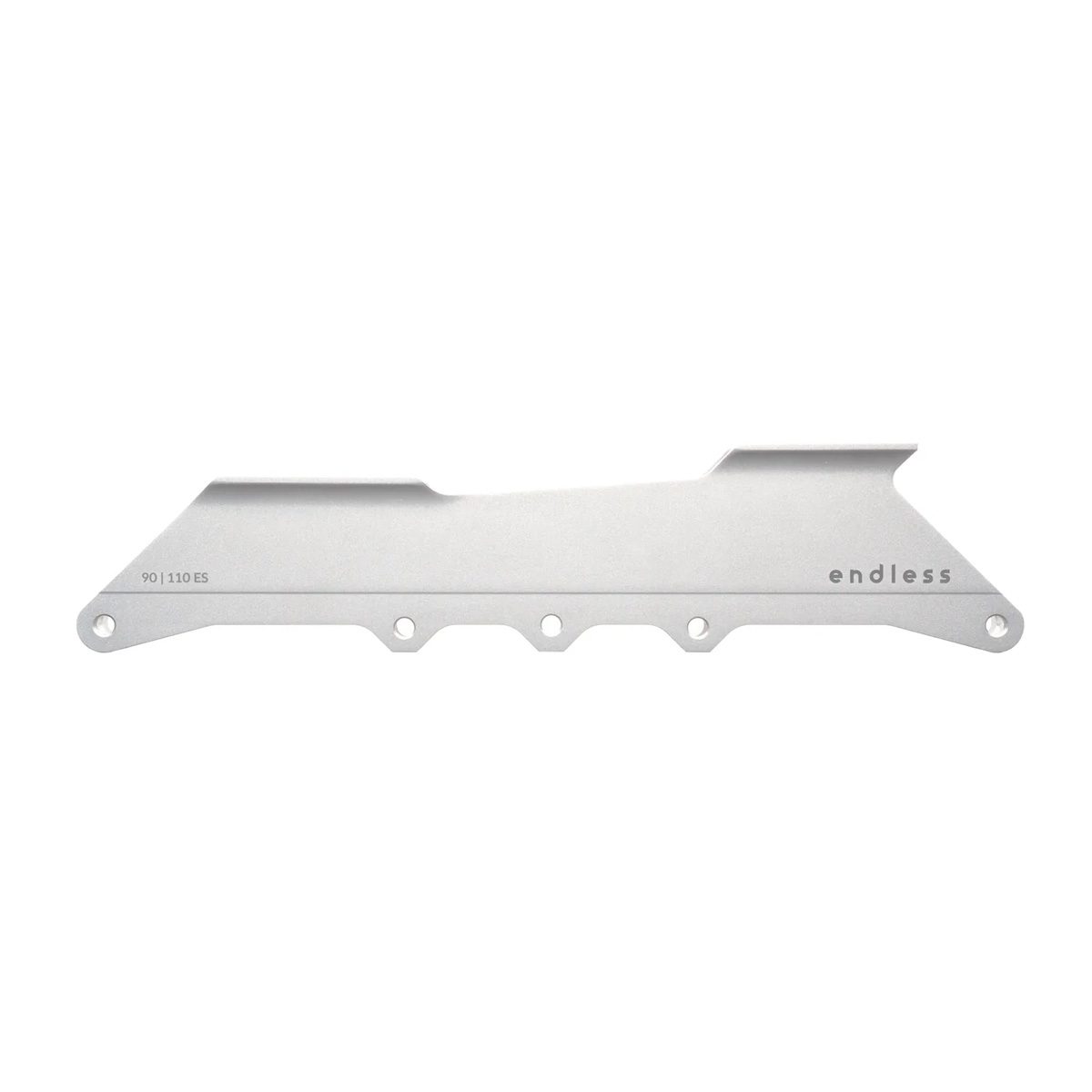

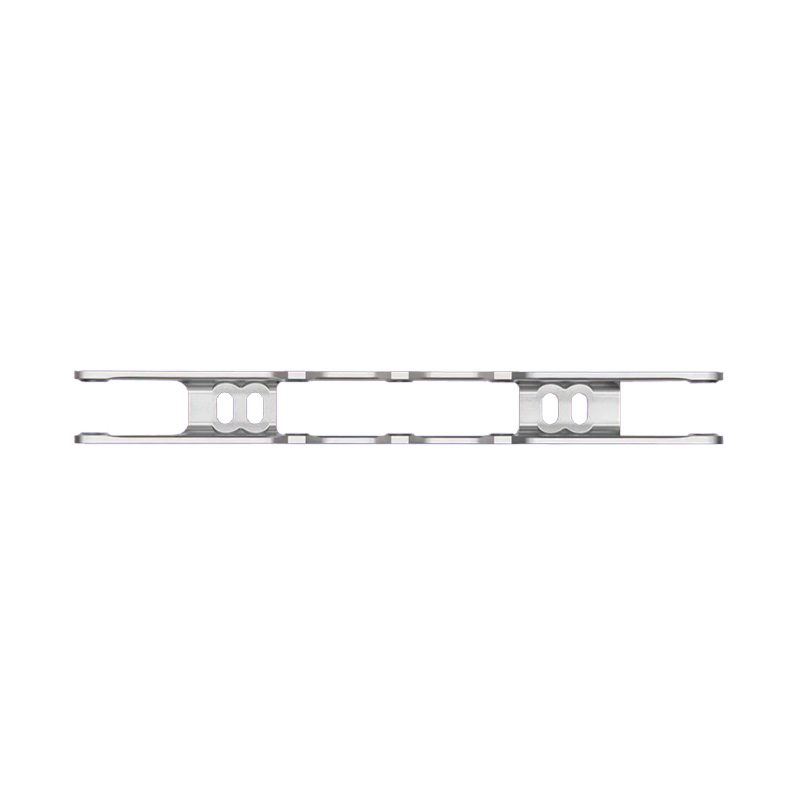

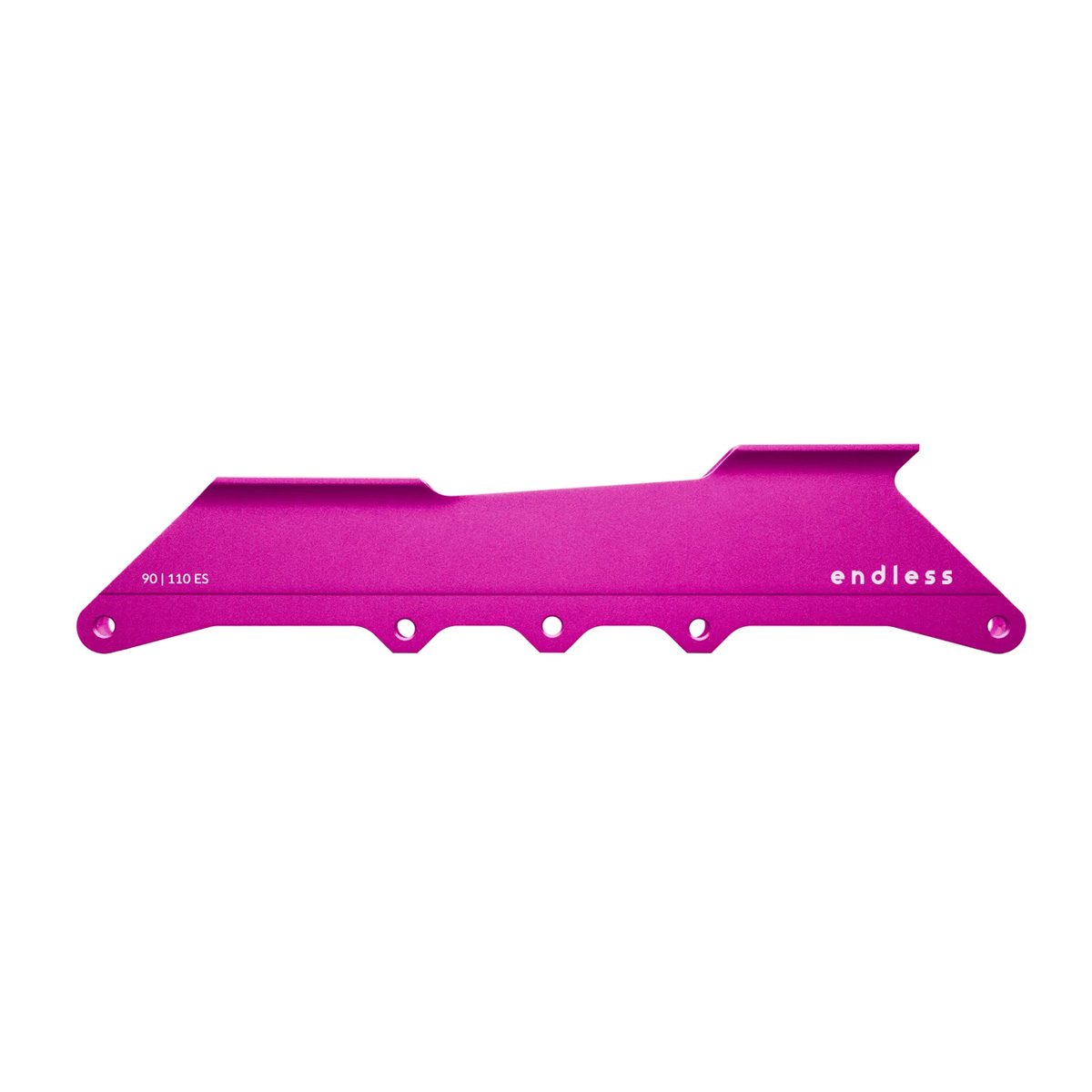

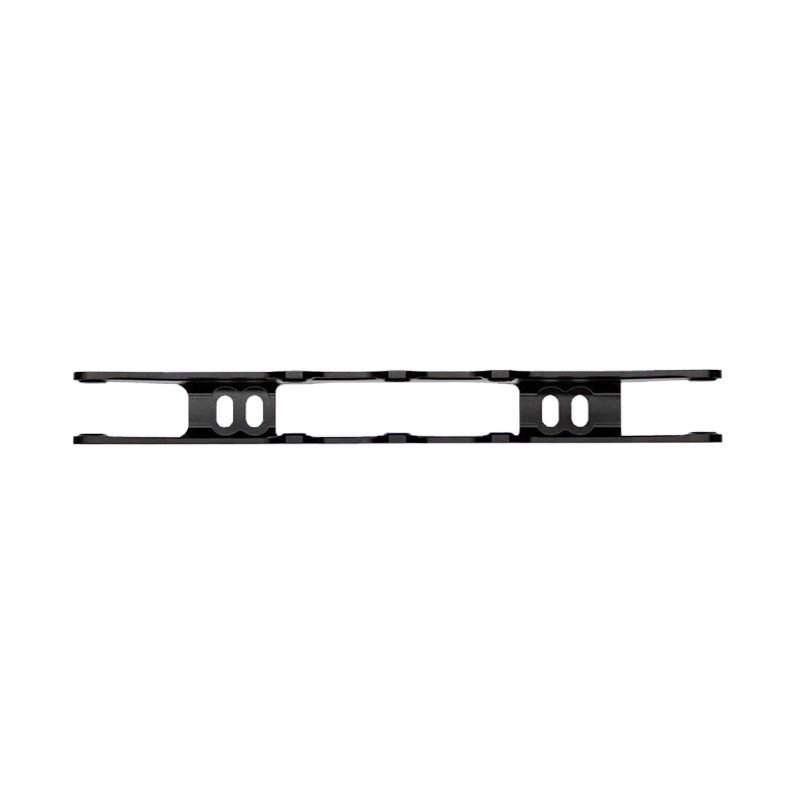

Introducing the Endless 90 ES Frame.
This frame is a precision machined, multi-setup enhanced stability frame specifically designed for skaters with larger foot sizes using 165 mm compatible freeride skates. The extra wheelbase length is optimized for boot sizes 44 and up. Endless frames offer the first urban frame for large-footed skaters seeking a big wheel setup that is properly suited for the size of their feet. Endless believes that nobody should have to skate comically short frames on a size 47 boot or be forced into a larger wheel size just to have a wheelbase that provides adequate stability.
This frame is also a good fit for any skater seeking a little extra length and stability over our regular Endless 90 frame.
NOTE: This frame requires a 165 Raised Heel boot. It IS NOT compatible with UFS or Powerslide Trinity boots.
Features
Features
- Multiple setups: 4x90, 3x110
- Balanced Rocker for 4-wheel setups
- Flat configuration for 3x110 setup. Compatible with bullet profile wheels only
- Recommended for all skill levels
- Recommended for boot sizes 42 (270 mm foot length) and above, and specifically for sizes 44-48
- Mounting: 150, 165, 180 mm
-
Boot compatibility: Some boots may require modification or a washer between the frame and boot to allow clearance for new 110 mm wheels in the 3x110 setup: Adapt GT/GTS/GTO
- Note: on Adapt skates our frames are not optimally centered
- Not compatible with UFS boots (including FR Skates UFR)
- Wheelbase: 291 mm
-
Brake compatibility:
- 4x90: Powerslide Urban Brake Size L (908058/3), Powerslide Road Hog Speed Brake (907005),
- 3x110: Powerslide Megacruiser Brake (907029) - may require modification
- One frame set includes: 2 frames and 8 axles
- CNC-machined from 6061-T6 aluminum
- Weight = 310 grams, without spacers and axles
